Union Elbow
Union Elbow

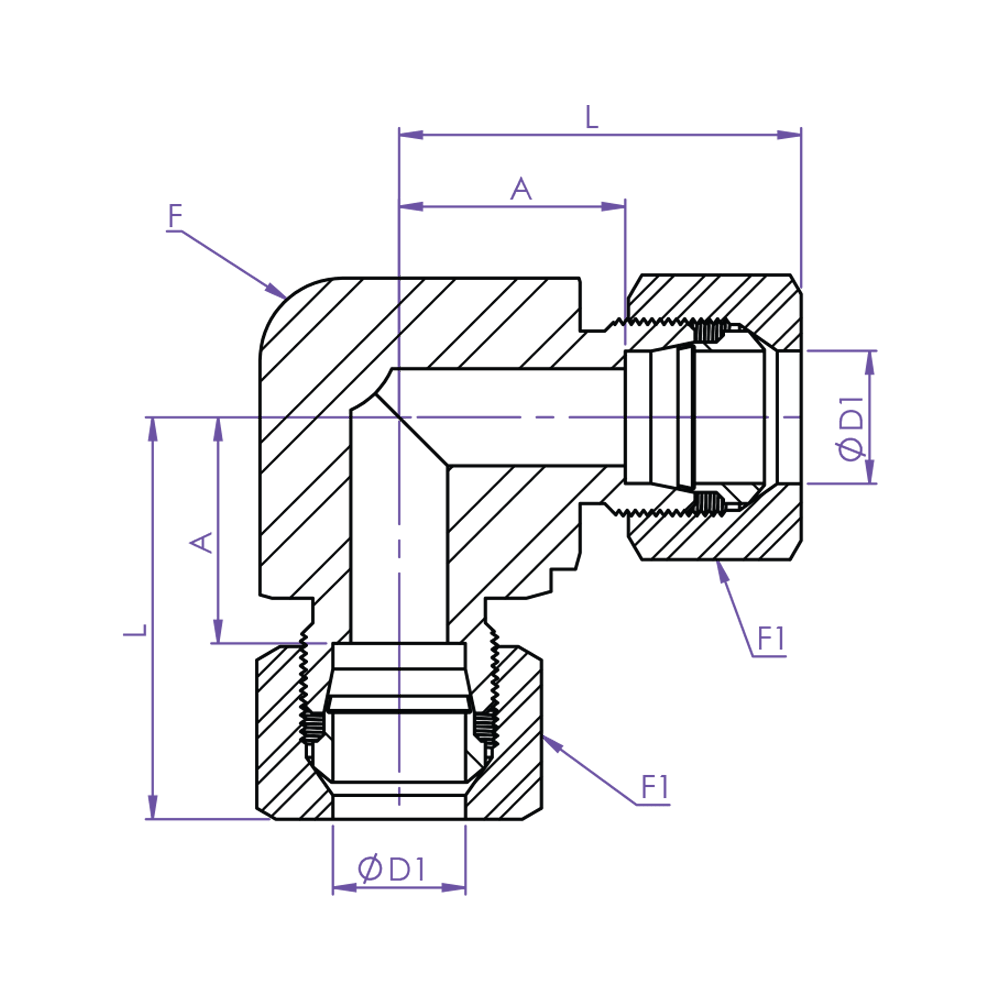

| Series | Part No. | Tube ØD1 | F1 | F | L | A |
|---|---|---|---|---|---|---|
| LL | ACI / HF/UE/04LL | 4 | 10 | 9 | 21 | 11 |
| very light | ACI / HF/UE/06LL | 6 | 12 | 9 | 21 | 9.5 |
| PN 100 | ACI / HF/UE/08LL | 8 | 14 | 12 | 23 | 11.5 |
| LL | ACI / HF/UE/10LL | 10 | 17 | 14 | 24 | 12.5 |
| LL | ACI / HF/UE/12LL | 12 | 19 | 17 | 25 | 13 |
| L | ACI / HF/UE/06LL | 6 | 12 | 9 | 21 | 11 |
| light | ACI / HF/UE/08LL | 8 | 14 | 12 | 23 | 14 |
| PN 315 | ACI / HF/UE/08LL | 10 | 19 | 14 | 30 | 14 |
| LL | ACI / HF/UE/12LL | 12 | 22 | 17 | 32 | 17 |
| LL | ACI / HF/UE/15LL | 15 | 27 | 19 | 35 | 23.5 |
| LL | ACI / HF/UE/18LL | 18 | 32 | 24 | 40 | 27.5 |
| PN 160 | ACI / HF/UE/22L | 22 | 36 | 27 | 44 | 27.5 |
| PN 160 | ACI / HF/UE/28L | 28 | 41 | 36 | 47 | 30.5 |
| PN 160 | ACI / HF/UE/35L | 35 | 50 | 36 | 56 | 34.5 |
| PN 160 | ACI / HF/UE/42L | 42 | 60 | 63 | 60 | 40 |
| S | ACI / HF/UE/06S | 6 | 17 | 12 | 31 | 16 |
| heavy | ACI / HF/UE/08S | 8 | 19 | 14 | 32 | 17 |
| PN 630 | ACI / HF/UE/10S | 10 | 22 | 17 | 34 | 17.5 |
| PN 630 | ACI / HF/UE/12S | 12 | 24 | 17 | 38 | 21.5 |
| PN 630 | ACI / HF/UE/14S | 14 | 27 | 19 | 40 | 24 |
| PN 400 | ACI / HF/UE/16S | 16 | 30 | 24 | 43 | 24.5 |
| PN 400 | ACI / HF/UE/20S | 20 | 36 | 27 | 48 | 26.5 |
| PN 400 | ACI / HF/UE/25S | 25 | 46 | 36 | 54 | 30 |
| PN 400 | ACI / HF/UE/30S | 30 | 50 | 41 | 62 | 35.5 |
| PN 315 | ACI / HF/UE/38S | 38 | 60 | 50 | 72 | 41 |
Above item is manufactured in all the following gradess (S.S, ALLOY, C.S ,DUPLEX , SUPER DUPLEX , HASTELLOY, MONEL, INCONEL )
Note:- All dimensions are in millimeters unless otherwise specified . Dimensions are for reference only , subject to change
