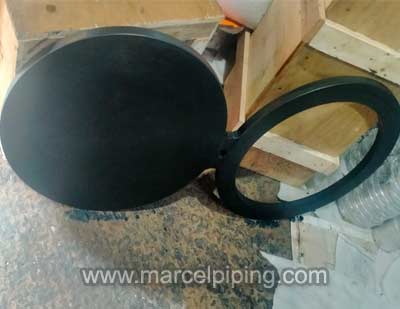

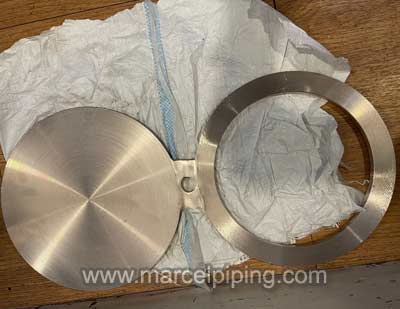

Spectacle Blind Flange
Spectacle Blind Flange
Spectacle Blind Flange
Spectacle Blind Flange ASME B16.48, Spectacle Blind Flange Flat Face, JIS Spectacle Blind Flange
Spectacle Blind Flange Price, Spectacle Blind Flange Material, Spectacle Blind Flange RF, Spectacle Blind Flange Weight
What is ASME B16.48 Spectacle Blind Flange?
ASME B16.48 Spectacle blind, spades, and spacers which are also known as figure-8, paddle blank, Slip blind and spacer. Our offered Spectacle Blind Flange RF different components that used in piping for positive isolation of the section of a line or equipment during maintenance and shutdown.
JIS Spectacle Blind flange also used during operation wherever positive shutoff is required to prevent leakage of one fluid into another. ASME B16.48 Spectacle Blind Flanges are used to provide flexibility during maintenance an operation.
Arcellor Controls is also supplier of Flat Face Spectacle Blind Flanges , manufactured at our facility to companies in various industries including power generation, petrochemical plants,pharmaceutical plants , shipbuilding, oil refineries, waste water treatment plants, paper mills and turnkey projects among others.Our Spectacle Blind Flange RF is widely exported to countries and regions such as the United States, Europe, Jordan, Russia, Turkey, Malaysia, the UAE, Sri Lanka, Saudi Arabia, Thailand, Iran, Brazil, Mexico, South Africa, Tunisia, Vietnam, Indonesia,Singapore, Colombia and Chile. Arcellor Controls is a highly acclaimed ASME/ANSI/DIN Spectacle Blind Flange Manufacturers in India. Call now for a free sample!
Supplier Of Spectacle Blind Flange UK, Spectacle Blind Flange Thickness, Spectacle Blind Flange Class 900, Spectacle Blind Flange Class 2500, Spectacle Blind Flange Material
Spectacle Blind Flanges ASME, Spectacle Blind Flange Weight Chart, Spectacle Blind Flange ANSI, Spectacle Blind flange singapore, Spectacle Blind flange supplier in malaysia
ANSI/ASME B16.48 Spectacle Blind Flange Specification
| Dimensions | ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings |
| Size | 1/2″ (15 NB) to 48″ (1200NB) |
| Class | 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc. |
| DIN | DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673 |
| BS | BS4504 , BS4504, BS1560, BS10 |
| Coating/Surface Treatment | Antirust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized |
| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Value Added Services | CNC Machining, Customised Flanges |
ANSI B16.5 Spectacle Blind Flange Material Specification
Stainless Steel Spectacle Blind Flanges:
- ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H, 904L
Duplex & Super Duplex Steel Spectacle Blind Pipe Flanges:
- ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61
Carbon Steel Spectacle Blind Flanges:
- ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F706
Low Temperature Carbon Steel Spectacle Blind Flanges:
- ASTM A350, LF2, LF3
Alloy Steel Spectacle Blind Flanges:
- ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91
Copper Alloy Steel Spectacle Blind Flanges:
- ASTM SB 61 , SB62 , SB151 , SB152 UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200
Nickel Alloy Spectacle Blind Pipe Flanges:
- ASTM SB564, SB160, SB472, SB162 Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020)
ASTM A105 Spectacle Blind Flange
United States of America
ASME B16.48 Spectacle Blind Flange
Dubai, United Arab Emirates
Pn16 Spectacle Blind Flange
Nigeria
Stainless Steel 304 Spectacle Blind Flanges
Saudi Arabia
316 Stainless Steel Spectacle Blind Flange
Indonesia
ASTM A182 F316 Spectacle Blind
Malaysia
ASTM A182 F304 Spectacle Blinds
Singapore
Duplex Spade Blinds
Kuwait
Stainless Steel Figure 8 Spectacle Blind
Qatar
Mild Steel Spade Blind Flange
Vietnam
SA 105 Spectacle Blank
Mexico
Class 150 Paddle Blind Flange Dimensions
| NPS |
OUTSIDE Ø | INSIDE Ø | CENTER LINE | THK | WEB WIDTH | HOLE DIA | WEB THK |
|---|---|---|---|---|---|---|---|
| A | B | C | T | W | D | wt | |
| 1/2″ | 45 | 16 | 60 | 3 | 38 | 15.87 | 2 |
| 3/4″ | 54 | 21 | 70 | 3 | 38 | 15.87 | 2 |
| 1″ | 64 | 27 | 80 | 3 | 38 | 15.87 | 2 |
| 1.1/4″ | 73 | 42 | 90 | 6.4 | 38 | 15.87 | 4 |
| 1.1/2″ | 83 | 48 | 100 | 6.4 | 38 | 15.87 | 4 |
| 2″ | 102 | 61 | 120 | 6.4 | 51 | 19.05 | 4 |
| 2.1/2″ | 107 | 73 | 140 | 6.4 | 51 | 19.05 | 4 |
| 3″ | 133 | 89 | 150 | 6.4 | 64 | 19.05 | 4 |
| 3.1/2″ | 159 | 102 | 175 | 9.7 | 64 | 19.05 | 5 |
| 4″ | 172 | 114 | 190 | 9.7 | 64 | 19.05 | 5 |
| 5″ | 194 | 141 | 215 | 9.7 | 76 | 22.22 | 5 |
| 6″ | 219 | 168 | 240 | 12.7 | 76 | 22.22 | 7 |
| 8″ | 276 | 219 | 300 | 12.7 | 76 | 22.22 | 10 |
| 10″ | 337 | 273 | 360 | 15.7 | 102 | 25.4 | 12 |
| 12″ | 406 | 324 | 430 | 19.1 | 102 | 25.4 | 15 |
| 14″ | 448 | 356 | 475 | 19.1 | 108 | 28.57 | 15 |
| 16″ | 511 | 406 | 540 | 22.4 | 108 | 28.57 | 17 |
| 18″ | 546 | 457 | 580 | 25.4 | 114 | 31.75 | 20 |
| 20″ | 603 | 508 | 635 | 25.4 | 121 | 31.75 | 22 |
| 24″ | 714 | 610 | 750 | 31.8 | 140 | 34.92 | 24 |
| NPS |
OUTSIDE Ø | INSIDE Ø | CENTER LINE | THK | WEB WIDTH | HOLE DIA | WEB THK |
|---|---|---|---|---|---|---|---|
| A | B | C | T | W | D | wt | |
| 1/2″ | 51 | 16 | 65 | 6.4 | 38 | 15.87 | 4 |
| 3/4″ | 64 | 21 | 80 | 6.4 | 38 | 19.05 | 4 |
| 1″ | 70 | 27 | 90 | 6.4 | 38 | 19.05 | 4 |
| 1.1/4″ | 79 | 42 | 100 | 6.4 | 38 | 19.05 | 4 |
| 1.1/2″ | 92 | 48 | 115 | 6.4 | 38 | 22.22 | 4 |
| 2″ | 108 | 61 | 125 | 9.7 | 51 | 19.05 | 5 |
| 2.1/2″ | 127 | 73 | 150 | 9.7 | 51 | 22.22 | 5 |
| 3″ | 146 | 89 | 170 | 9.7 | 64 | 22.22 | 5 |
| 3.1/2″ | 162 | 102 | 185 | 12.7 | 64 | 22.22 | 7 |
| 4″ | 178 | 114 | 200 | 12.7 | 64 | 22.22 | 4 |
| 5″ | 213 | 141 | 235 | 15.7 | 76 | 22.22 | 8 |
| 6″ | 248 | 168 | 270 | 15.7 | 76 | 22.22 | 8 |
| 8″ | 305 | 219 | 330 | 22.4 | 76 | 25.4 | 17 |
| 10″ | 359 | 273 | 385 | 25.4 | 102 | 28.57 | 20 |
| 12″ | 419 | 324 | 450 | 28.4 | 102 | 31.75 | 22 |
| 14″ | 483 | 356 | 515 | 31.8 | 108 | 31.75 | 24 |
| 16″ | 536 | 406 | 570 | 38.1 | 108 | 34.92 | 29 |
| 18″ | 594 | 457 | 630 | 41.1 | 114 | 34.92 | 31 |
| 20″ | 651 | 508 | 685 | 44.5 | 121 | 34.92 | 34 |
| 24″ | 772 | 610 | 810 | 50.8 | 140 | 41.27 | 39 |
| NPS |
OUTSIDE Ø | INSIDE Ø | CENTER LINE | THK | WEB WIDTH | HOLE DIA | WEB THK |
|---|---|---|---|---|---|---|---|
| A | B | C | T | W | D | wt | |
| 1/2″ | 51 | 16 | 65 | 6.4 | 38 | 15.87 | 4 |
| 3/4″ | 64 | 21 | 80 | 6.4 | 38 | 19.05 | 4 |
| 1″ | 70 | 27 | 90 | 6.4 | 57 | 19.05 | 4 |
| 1.1/4″ | 79 | 37 | 100 | 9.7 | 57 | 19.05 | 5 |
| 1.1/2″ | 92 | 43 | 115 | 9.7 | 67 | 22.22 | 5 |
| 2″ | 108 | 55 | 125 | 9.7 | 57 | 19.05 | 5 |
| 2.1/2″ | 127 | 67 | 150 | 12.7 | 67 | 22.22 | 7 |
| 3″ | 146 | 83 | 170 | 12.7 | 67 | 22.22 | 7 |
| 3.1/2″ | 159 | 96 | 185 | 15.7 | 76 | 25.4 | 8 |
| 4″ | 191 | 108 | 215 | 15.7 | 76 | 25.4 | 8 |
| 5″ | 238 | 135 | 265 | 19.1 | 86 | 28.57 | 10 |
| 6″ | 264 | 162 | 290 | 22.4 | 86 | 28.57 | 12 |
| 8″ | 318 | 212 | 350 | 28.4 | 95 | 31.75 | 22 |
| 10″ | 397 | 265 | 430 | 35.1 | 105 | 34.92 | 27 |
| 12″ | 454 | 315 | 490 | 41.1 | 105 | 34.98 | 31 |
| 14″ | 489 | 346 | 525 | 44.5 | 114 | 38.1 | 34 |
| 16″ | 562 | 397 | 605 | 50.8 | 124 | 41.25 | 39 |
| 18″ | 610 | 448 | 655 | 53.8 | 133 | 44.45 | 41 |
| 20″ | 679 | 497 | 725 | 63.5 | 133 | 44.45 | 48 |
| 24″ | 787 | 597 | 840 | 73.2 | 152 | 50.8 | 55 |
| NPS |
OUTSIDE Ø | INSIDE Ø | CENTER LINE | THK | WEB WIDTH | HOLE DIA | WEB THK |
|---|---|---|---|---|---|---|---|
| A | B | C | T | W | D | wt | |
| 1/2″ | 60 | 16 | 80 | 6.4 | 38 | 22.22 | 4 |
| 3/4″ | 67 | 21 | 90 | 6.4 | 41 | 22.22 | 4 |
| 1″ | 76 | 27 | 100 | 6.4 | 57 | 25.4 | 4 |
| 1.1/4″ | 86 | 37 | 110 | 9.7 | 57 | 25.4 | 5 |
| 1.1/2″ | 95 | 43 | 125 | 9.7 | 67 | 28.57 | 5 |
| 2″ | 140 | 55 | 165 | 12.7 | 57 | 25.4 | 7 |
| 2.1/2″ | 162 | 67 | 190 | 12.7 | 67 | 28.57 | 7 |
| 3″ | 165 | 83 | 190 | 15.7 | 67 | 25.4 | 8 |
| 4″ | 203 | 108 | 235 | 19.1 | 76 | 31.75 | 10 |
| 5″ | 244 | 135 | 280 | 22.4 | 86 | 34.92 | 12 |
| 6″ | 286 | 162 | 320 | 25.4 | 86 | 31.75 | 13 |
| 8″ | 356 | 212 | 395 | 35.1 | 95 | 38.1 | 27 |
| 10″ | 432 | 265 | 470 | 41.1 | 105 | 38.1 | 31 |
| 12″ | 495 | 315 | 535 | 47.8 | 105 | 38.1 | 36 |
| 14″ | 518 | 346 | 560 | 53.8 | 114 | 41.27 | 41 |
| 16″ | 572 | 397 | 615 | 60.5 | 124 | 44.45 | 46 |
| 18″ | 635 | 448 | 685 | 66.5 | 133 | 50.8 | 50 |
| 20″ | 696 | 497 | 750 | 73.2 | 133 | 53.97 | 55 |
| 24″ | 835 | 597 | 900 | 88.9 | 152 | 66.67 | 67 |
| NPS |
OUTSIDE Ø | INSIDE Ø | CENTER LINE | THK | WEB WIDTH | HOLE DIA | WEB THK |
|---|---|---|---|---|---|---|---|
| A | B | C | T | W | D | wt | |
| 1/2″ | 61 | 16 | 80 | 6.4 | 38 | 22.22 | 4 |
| 3/4″ | 67 | 21 | 90 | 6.4 | 41 | 22.22 | 4 |
| 1″ | 76 | 27 | 100 | 6.4 | 57 | 25.4 | 4 |
| 1.1/4″ | 86 | 37 | 110 | 9.7 | 57 | 25.4 | 5 |
| 1.1/2″ | 95 | 43 | 125 | 9.7 | 67 | 28.57 | 5 |
| 2″ | 140 | 55 | 165 | 12.7 | 57 | 25.4 | 7 |
| 2.1/2″ | 162 | 67 | 190 | 12.7 | 67 | 28.57 | 7 |
| 3″ | 165 | 83 | 190 | 15.7 | 67 | 25.4 | 8 |
| 4″ | 203 | 108 | 235 | 19.1 | 76 | 31.75 | 10 |
| 5″ | 244 | 135 | 280 | 22.4 | 86 | 34.92 | 12 |
| 6″ | 286 | 162 | 320 | 25.4 | 86 | 31.75 | 13 |
| 8″ | 356 | 212 | 395 | 35.1 | 95 | 38.1 | 27 |
| 10″ | 432 | 265 | 470 | 41.1 | 105 | 38.1 | 31 |
| 12″ | 495 | 315 | 535 | 47.8 | 105 | 38.1 | 36 |
| 14″ | 518 | 346 | 560 | 53.8 | 114 | 41.27 | 41 |
| 16″ | 572 | 397 | 615 | 60.5 | 124 | 44.45 | 46 |
| 18″ | 635 | 448 | 685 | 66.5 | 133 | 50.8 | 50 |
| 20″ | 696 | 497 | 750 | 73.2 | 133 | 53.97 | 55 |
| 24″ | 835 | 597 | 900 | 88.9 | 152 | 66.67 | 67 |
| NPS |
OUTSIDE Ø | INSIDE Ø | CENTER LINE | THK | WEB WIDTH | HOLE DIA | WEB THK |
|---|---|---|---|---|---|---|---|
| A | B | C | T | W | D | wt | |
| 1/2″ | 67 | 16 | 90 | 9.7 | 38 | 22.22 | 5 |
| 3/4″ | 73 | 21 | 95 | 9.7 | 41 | 22.22 | 5 |
| 1″ | 83 | 27 | 110 | 9.7 | 64 | 25.4 | 5 |
| 1.1/4″ | 102 | 35 | 130 | 12.7 | 64 | 28.57 | 7 |
| 1.1/2″ | 114 | 41 | 145 | 15.7 | 70 | 31.75 | 8 |
| 2″ | 143 | 53 | 170 | 15.7 | 70 | 28.57 | 8 |
| 2.1/2″ | 165 | 63 | 195 | 19.1 | 76 | 31.75 | 10 |
| 3″ | 194 | 78 | 230 | 22.4 | 76 | 34.92 | 12 |
| 4″ | 232 | 102 | 275 | 28.4 | 89 | 41.27 | 22 |
| 5″ | 276 | 128 | 325 | 35.1 | 89 | 47.62 | 27 |
| 6″ | 314 | 154 | 370 | 41.1 | 89 | 53.97 | 31 |
| 8″ | 384 | 198 | 440 | 53.8 | 102 | 53.97 | 41 |
| 10″ | 473 | 248 | 540 | 66.5 | 114 | 66.67 | 50 |
| 12″ | 546 | 289 | 620 | 79.2 | 114 | 73.02 | 60 |
| Nominal Size | Outside diameter of flange | Diameter of bolt hole centre circle | Diamter of bolt hole | Number of bolt | Nominal desig-nation of thread of bolt |
Inside diameter | Inside diameter | Depth of socket | Thickness of Flange | Diameter of hub Small diameter side | Diameter of hub Large diamter side | Totle length of flange | Radius of fillet |
| A | D | C | h | d0 | d(18) | S | t | a | b | T | r | ||
10 15 20 |
90 95 100 |
65 70 75 |
15 15 15 |
4 4 4 |
M12 M12 M12 |
17.8 22.2 27.7 |
12.7 16.1 21.6 |
10 10 13 |
12 12 14 |
23 27 33 |
26 30 36 |
16 16 20 |
4 4 4 |
25 32 40 |
125 135 140 |
90 100 105 |
19 19 19 |
4 4 4 |
M16 M16 M16 |
34.5 43.2 49.1 |
27.6 35.7 41.6 |
13 13 13 |
14 16 16 |
41 50 56 |
44 53 60 |
20 22 24 |
4 4 4 |
50 65 80 |
155 175 185 |
120 140 150 |
19 19 19 |
4 4 8 |
M16 M16 M16 |
61.1 77.1 90.0 |
52.9 67.9 80.7 |
16 16 16 |
16 18 18 |
69 86 99 |
73 91 105 |
24 27 30 |
4 4 4 |
| Flanges pressure rating in psig for Spectacle Blind Flange ASME |
|||||||
| Temperature (F°) | 150# | 300# | 400# | 600# | 900# | 1500# | 2500# |
| -20 to 100 | 285 | 740 | 985 | 1480 | 2220 | 3705 | 6170 |
| 200 | 260 | 680 | 905 | 1360 | 2035 | 3395 | 5655 |
| 300 | 230 | 655 | 870 | 1310 | 1965 | 3270 | 5450 |
| 400 | 200 | 635 | 845 | 1265 | 1900 | 3170 | 5280 |
| 500 | 170 | 605 | 805 | 1205 | 1810 | 3015 | 5025 |
| 600 | 140 | 570 | 755 | 1135 | 1705 | 2840 | 4730 |
| 650 | 125 | 550 | 730 | 1100 | 1650 | 2745 | 4575 |
| 700 | 110 | 530 | 710 | 1060 | 1590 | 2655 | 4425 |
| 750 | 95 | 505 | 675 | 1015 | 1520 | 2535 | 4230 |
| 800 | 80 | 410 | 550 | 825 | 1235 | 2055 | 3430 |
| 850 | 65 | 320 | 425 | 640 | 955 | 1595 | 2655 |
| 900 | 50 | 230 | 305 | 460 | 690 | 1150 | 1915 |
| 950 | 35 | 135 | 185 | 275 | 410 | 685 | 1145 |
| 1000 | 20 | 85 | 115 | 170 | 255 | 430 | 715 |
| Spectacle Blind Flange | Raised Face Spectacle Blind Flanges |
| ANSI B16.48 Spectacle Blind Flanges | Spectacle Blind Flange Dimensions |
| ASME B16.5 Spectacle Blind Flanges | ANSI B16.5 Class 150 Spectacle Blind Flanges |
| Flat Face Spectacle Blind Flanges | DIN Spectacle Blind Flange |
| Spectacle Blind Plate Flanges | ASME B16.47 Series A and B Spectacle Blind Flanges |
| ANSI B16.5 class 150 Spectacle Blind Flange | ANSI 150 Spectacle Blind Flange |
| Carbon Steel Spectacle Blind Flange | High Quality Spectacle Blind Flanges |
| Spectacle Blind Flange RF | JIS Spectacle Blind Flange |
| ASME B16.48 Spectacle Blind Flanges | Spectacle Blind Flanges Flat Face |
AFRICA Nigeria Algeria Angola Tanzania Libya Egypt Sudan Equatorial Guinea The Republic Of Congo Gabon NORTH AMERICA Usa Canada Mexico Costa Rica Trinidad And Tobago Jamaica Denmark |
MIDDLE EAST ASIA Saudi Arabia Iran Iraq Uae Qatar Bahrain Oman Kuwait Turkey Jordan SOUTH AMERICA Argentina Bolivia Brazil Chile Venezuela Colombia Ecuador Guyana Paraguay Uruguay |
EUROPE Norway Germany France Italy Uk Spain Netherland Belgium Greece Czech Republic Portugal Hungary SOUTH AFRICA |
ASIA India Singapore Malaysia Indonesia Thailand Vietnam South Korea Japan Sri Lanka Maldives Bangladesh Mayanmar Taiwan Cambodia |
 Hex Body.png)
.png)
.png)
