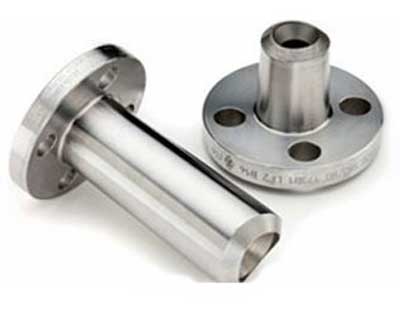

SS Nipo Flange

ANSI B16.5 Weldo Flange, Nipo Flange Dimensions

Weldo Flange Dimensions
Nipo Flange Dimensions
Weldo Flange Price

ASME B16.5 Weldoflange, Nipo Flange Weights, Weldo Flange Sizes, Nipo Flange For Sale, Nipoflange Wall Thickness

Arcellor Controls is a well-known manufacturer and supplier of Nipo Flanges in India. These flanges are a combination of a Welding Neck flange and a Weldolet or Nipolet, manufactured as a single piece without welding. Our Weldo Flanges are made using premium quality raw materials and advanced technology by expert professionals. The range includes various specifications and designs, suitable for branch connections.

We are reputed as SS Nipo Flanges Manufacturers in India. For detailed information on Nipo Flange Dimensions, Weldo Flange Weights, and Weldo Flange Dimensions, check the specifications before ordering to meet your requirements.

Supplier Of:

Class 300, 600, 900, 1500 Weldoflange
Weldo Flange UK
Nipo Flanges Standards
Nipo Flange Uses
ASME B16.47 Series A and B Weldoflange
DIN86029 PN10 Weldoflange
MSS SP-44 Weldoflange

Forged Flange Manufacturers:

Ahmedabad
Europe
India
Chennai

ANSI/ASME B16.5 Nipo / Weldo Flange Specification

Dimensions	ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Size	1/2″ (15 NB) to 48″ (1200NB)
Class	150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.
DIN	DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673
BS	BS4504 , BS4504, BS1560, BS10
Coating/Surface Treatment	Antirust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized
Flange Face Type	Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Value Added Services	CNC Machining, Customised Flanges

ANSI B16.5 Nipo Flange, Weldo Flange Material Specification

Stainless Steel Weldo / Nipo Flanges:

ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H, 904L

Duplex & Super Duplex Steel Weldo / Nipo Flanges:

ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61

Carbon Steel Weldo / Nipo Flanges:

ASTM / ASME A/SA 105 ASTM / ASME A 350, ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F706

Low-Temperature Carbon Steel Weldo / Nipo Flanges:

ASTM A350, LF2, LF3

Alloy Steel Weldo / Nipo Flanges:

ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91

Copper Alloy Steel Weldo / Nipo Flanges:

ASTM SB 61, SB62, SB151, SB152 UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200

Nickel Alloy Weldo / Nipo Flanges:

ASTM SB564, SB160, SB472, SB162 Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020)

Weldo / Nipo Flange Dimensions Branch ½”

RATING		NOMINAL PIPE SIZE FROM 3/4″ TO 36″

	Bore schedule	B	C	D	E	Weight [kg]
	STD	15,8	18,5			0,9
150#	XS	13,8	17,6	88,9	11,2	0,9
	160	11,7	11,7	88,9	11,2	0,9
	160	11,7	11,7			0,9
	XXS	6,4	6,4			0,9
	Bore schedule	B	C	D	E	Weight [kg]
	STD	15,8	18,5			1,2
300#	XS	13,8	17,6	95,3	14,3	1,2
	160	11,7	11,7	95,3	14,3	1,2
	160	11,7	11,7			1,2
	XXS	6,4	6,4			1,2
	Bore schedule	B	C	D	E	Weight [kg]
	STD	15,8	18,5			1,3
600#	XS	13,8	17,6	95,3	14,3	1,3
	160	11,7	11,7	95,3	14,3	1,3
	160	11,7	11,7			1,3
	XXS	6,4	6,4			1,3
	Bore schedule	B	C	D	E	Weight [kg]
	STD	15,8	18,5			2,4
900#	XS	13,8	17,6	120,6	22,4	2,4
	160	11,7	11,7	120,6	22,4	2,4
	160	11,7	11,7			2,4
	XXS	6,4	6,4			2,4
	Bore schedule	B	C	D	E	Weight [kg]
	STD	15,8	18,5			2,4
1500#	XS	13,8	17,6	120,6	22,4	2,4
	160	11,7	11,7	120,6	22,4	2,4
	160	11,7	11,7			2,4
	XXS	6,4	6,4			2,4
	Bore schedule	B	C	D	E	Weight [kg]
	STD	15,8	18,5			3,6
2500#	XS	13,8	17,6	133,4	30,2	3,6
	160	11,7	11,7	133,4	30,2	3,6
	160	11,7	11,7			3,6
	XXS	6,4	6,4			3,6

Branch ¾” Weldo / Nipo Flange Dimensions

RATING		NOMINAL PIPE SIZE FROM 1″ TO 36″

	Bore schedule		B	C	D	E	Weight [kg]
	STD		21	23,8			1,2
150#	XS		18,9	22,8	98,6	12,7	1,2
	160		15,6	15,6	98,6	12,7	1,4
	160		15,6	15,6			1,4
	XXS		11,1	11,1			1,5
	Bore schedule		B	C	D	E	Weight [kg]
	STD		21	23,8			1,7
300#	XS		18,9	22,8	117,4	15,8	1,9
	160		15,6	15,6	117,4	15,8	2
	160		15,6	15,6			2
	XXS		11,1	11,1			2,1
	Bore schedule		B	C	D	E	Weight [kg]
	STD		21	23,8			2
600#	XS		18,9	22,8	117,4	15,8	2,1
	160		15,6	15,6	117,4	15,8	2,2
	160		15,6	15,6			2,2
	XXS		11,1	11,1			2,2
	Bore schedule		B	C	D	E	Weight [kg]
	STD		21	23,8			3,1
900#	XS		18,9	22,8	130	25,4	3,2
	160		15,6	15,6	130	25,4	3,2
	160		15,6	15,6			3,2
	XXS		11,1	11,1			3,3
	Bore schedule		B	C	D	E	Weight [kg]
	STD		21	23,8			3,1
1500#	XS		18,9	22,8	130	25,4	3,2
	160		15,6	15,6	130	25,4	3,2
	160		15,6	15,6			3,2
	XXS		11,1	11,1			3,3
	Bore schedule		B	C	D	E	Weight [kg]
	STD		21	23,8			4,4
2500#	XS		18,9	22,8	139,7	31,8	4,5
	160		15,6	15,6	139,7	31,8	4,5
	160		15,6	15,6			4,5
	XXS		11,1	11,1			4,6

Weldo Flange Dimensions Branch 1”

RATING	NOMINAL PIPE SIZE FROM 1.1/2″ TO 36″

	Bore schedule	B	C	D	E	Weight [kg]
	STD	26,6	30			1,7
150#	XS	24,3	28,8	108	14,3	1,7
	160	20,7	20,7	108	14,3	2
	160	20,7	20,7			2
	XXS	15,2	15,2			2,2
	Bore schedule	B	C	D	E	Weight [kg]
	STD	26,6	30			2,3
300#	XS	24,3	28,8	124	17,6	2,5
	160	20,7	20,7	124	17,6	2,6
	160	20,7	20,7			2,6
	XXS	15,2	15,2			2,8
	Bore schedule	B	C	D	E	Weight [kg]
	STD	26,6	30			2,6
600#	XS	24,3	28,8	124	17,6	2,7
	160	20,7	20,7	124	17,6	2,8
	160	20,7	20,7			2,8
	XXS	15,2	15,2			3
	Bore schedule	B	C	D	E	Weight [kg]
	STD	26,6	30			4,5
900#	XS	24,3	28,8	149,4	28,5	4,6
	160	20,7	20,7	149,4	28,5	4,7
	160	20,7	20,7			4,7
	XXS	15,2	15,2			4,8
	Bore schedule	B	C	D	E	Weight [kg]
	STD	26,6	30			4,5
1500#	XS	24,3	28,8	149,4	28,5	4,6
	160	20,7	20,7	149,4	28,5	4,7
	160	20,7	20,7			4,7
	XXS	15,2	15,2			4,8
	Bore schedule	B	C	D	E	Weight [kg]
	STD	26,6	30			6,1
2500#	XS	24,3	28,8	158,8	35,1	6,2
	160	20,7	20,7	158,8	35,1	6,2
	160	20,7	20,7			6,2
	XXS	15,2	15,2			6,3

Nipo Flange Dimensions Branch 1½”

RATING		NOMINAL PIPE SIZE FROM 2″ TO 36″

	Bore schedule		B	C	D	E	Weight [kg]
	STD		40,9	44,6			3,1
150#	XS		38,1	43,2	127	17,5	3,3
	160		34	34	127	17,5	3,5
	160		34	34			3,5
	XXS		28	28			3,8
	Bore schedule		B	C	D	E	Weight [kg]
	STD		40,9	44,6			4,1
300#	XS		38,1	43,2	155,5	20,6	4,5
	160		34	34	155,5	20,6	4,7
	160		34	34			4,7
	XXS		28	28			5
	Bore schedule		B	C	D	E	Weight [kg]
	STD		40,9	44,6			4,9
600#	XS		38,1	43,2	155,5	22,4	5
	160		34	34	155,5	22,4	5,2
	160		34	34			5,2
	XXS		28	28			5,5
	Bore schedule		B	C	D	E	Weight [kg]
	STD		40,9	44,6			7,2
900#	XS		38,1	43,2	177,8	31,8	7,4
	160		34	34	177,8	31,8	7,6
	160		34	34			7,6
	XXS		28	28			7,9
	Bore schedule		B	C	D	E	Weight [kg]
	STD		40,9	44,6			7,2
1500#	XS		38,1	43,2	177,8	31,8	7,4
	160		34	34	177,8	31,8	7,6
	160		34	34			7,6
	XXS		28	28			7,9
	Bore schedule		B	C	D	E	Weight [kg]
	STD		40,9	44,6			12
2500#	XS		38,1	43,2	203,2	44,5	12
	160		34	34	203,2	44,5	12,2
	160		34	34			12,2
	XXS		28	28			12,5

Weldo / Nipo Flange Dimensions Branch 2″

RATING		NOMINAL PIPE SIZE FROM 3″ TO 36″

	Bore schedule		B	C	D	E	Weight [kg]
	STD		52,5	56,4			4,1
150#	XS		49,2	54,8	152,4	19,1	4,8
	160		42,8	42,8	152,4	19,1	5,1
	160		42,8	42,8			5,1
	XXS		38,2	38,2			5,5
	Bore schedule		B	C	D	E	Weight [kg]
	STD		52,5	56,4			5,5
300#	XS		49,2	54,8	165,1	22,4	5,8
	160		42,8	42,8	165,1	22,4	6,1
	160		42,8	42,8			6,1
	XXS		38,2	38,2			6,5
	Bore schedule		B	C	D	E	Weight [kg]
	STD		52,5	56,4			6,2
600#	XS		49,2	54,8	165,1	25,4	6,5
	160		42,8	42,8	165,1	25,4	7
	160		42,8	42,8			7
	XXS		38,2	38,2			7,2
	Bore schedule		B	C	D	E	Weight [kg]
	STD		52,5	56,4			13
900#	XS		49,2	54,8	215,9	38,1	13,3
	160		42,8	42,8	215,9	38,1	13,6
	160		42,8	42,8			13,6
	XXS		38,2	38,2			13,9
	Bore schedule		B	C	D	E	Weight [kg]
	STD		52,5	56,4			13
1500#	XS		49,2	54,8	215,9	38,1	13,3
	160		42,8	42,8	215,9	38,1	13,6
	160		42,8	42,8			13,6
	XXS		38,2	38,2			13,9
	Bore schedule		B	C	D	E	Weight [kg]
	STD		52,5	56,4			18,4
2500#	XS		49,2	54,8	235	50,8	18,6
	160		42,8	42,8	235	50,8	19
	160		42,8	42,8			19
	XXS		38,2	38,2			19,3

Weldo Flange Dimensions Branch 3”

RATING	NOMINAL PIPE SIZE FROM 4″ TO 36″

	Bore schedule	Length	D	E	Weight [kg]
150#	10-STD	115			7,5
150#	XS-80	115	191	23,9	7,5
	XS-80	115	191	23,9	7,5
	160-XXS	145			8
	Bore schedule	Length	D	E	Weight [kg]
300#	10-STD	125			10
300#	XS-80	125	210	28,5	10
	XS-80	125	210	28,5	10
	160-XXS	150			11
	Bore schedule	Length	D	E	Weight [kg]
600#	10-STD	135			13,5
600#	XS-80	135	210	38,2	13,5
	XS-80	135	210	38,2	13,5
	160-XXS	165			14,5
	Bore schedule	Length	D	E	Weight [kg]
900#	10-STD	155			17
900#	XS-80	155	241	44,5	17
	XS-80	155	241	44,5	17
	160-XXS	180			18
	Bore schedule	Length	D	E	Weight [kg]
1500#	10-STD	170			25
1500#	XS-80	170	267	54,1	25
	XS-80	170	267	54,1	25
	160-XXS	200			26
	Bore schedule	Length	D	E	Weight [kg]
2500#	10-STD	220			45,5
2500#	XS-80	220	305	72,9	45,5
	XS-80	220	305	72,9	45,5
	160-XXS	250			51

Nipo Flange Dimensions Branch 4″

RATING	NOMINAL PIPE SIZE FROM 5″ TO 36″

	Bore schedule	Length	D	E	Weight [kg]
150#	10-STD	130			11,5
150#	XS-80	130	229	23,9	11,5
	XS-80	130	229	23,9	11,5
	160-XXS	160			13
	Bore schedule	Length	D	E	Weight [kg]
300#	10-STD	140			16
300#	XS-80	140	254	31,8	16
	XS-80	140	254	31,8	16
	160-XXS	170			17
	Bore schedule	Length	D	E	Weight [kg]
600#	10-STD	160			24
600#	XS-80	160	273	44,5	24
	XS-80	160	273	44,5	24
	160-XXS	195			26
	Bore schedule	Length	D	E	Weight [kg]
900#	10-STD	170			28
900#	XS-80	170	292	50,8	28
	XS-80	170	292	50,8	28
	160-XXS	205			29,5
	Bore schedule	Length	D	E	Weight [kg]
1500#	10-STD	180			38
1500#	XS-80	180	311	60,2	38
	XS-80	180	311	60,2	38
	160-XXS	215			40
	Bore schedule	Length	D	E	Weight [kg]
2500#	10-STD	250			70,5
2500#	XS-80	250	356	82,4	70,5
	XS-80	250	356	82,4	70,5
	160-XXS	281			72

Weldo / Nipo Flange Dimensions Branch 6″

RATING	NOMINAL PIPE SIZE FROM 8″ TO 36″

	Bore schedule	Length	D	E	Weight [kg]
150#	10-STD	150			23,5
150#	XS-80	170	279	25,4	25
	XS-80	170	279	25,4	25
	160-XXS	195			27
	Bore schedule	Length	D	E	Weight [kg]
300#	10-STD	160			36,6
300#	XS-80	175	318	36,6	37,5
	XS-80	175	318	36,6	37,5
	160-XXS	205			39
	Bore schedule	Length	D	E	Weight [kg]
600#	10-STD	185			49,5
600#	XS-80	200	356	54,1	51
	XS-80	200	356	54,1	51
	160-XXS	230			53,2
	Bore schedule	Length	D	E	Weight [kg]
900#	10-STD	210			62,5
900#	XS-80	225	381	62	64,3
	XS-80	225	381	62	64,3
	160-XXS	250			66
	Bore schedule	Length	D	E	Weight [kg]
1500#	10-STD	240			87,5
1500#	XS-80	255	394	88,9	89
	XS-80	255	394	88,9	89
	160-XXS	285			91,2
	Bore schedule	Length	D	E	Weight [kg]
2500#	10-STD	340			186
2500#	XS-80	360	483	114,3	189
	XS-80	360	483	114,3	189
	160-XXS	385			192,5

Types of Weldo / Nipo Flanges

Weldo Flange	SS Nipo Flange
ANSI B16.5 Weldo Flanges	Nipo Flange Dimensions
ASME B16.5 Nipo Flanges	ANSI B16.5 Class 150 Nipo Flanges
ANSI B16.5 Class 150 Weldo Flanges	DIN Weldo Flange
Weldo Flange Class 600	Weldo Flange Dimensions
ANSI B16.5 class 150 Forged Flange	ANSI 150 Weldo Flange
Stainless Steel Nipo Flange	High Quality Nipo Flanges
ANSI B16.5 Nipo Flange	Nipo Flange
Threaded Forged Flanges	Class 300 Nipo Flanges

ASME B16.5 Weldo / Nipo Flange Price

Nipo Flange Price: $15.45 / each
ANSI B16.5 Weldo Flange Price: $20.14 / each
ASME B16.5 Weldo / Nipo Flange Price: $18.35 / each

ASME/ANSI B16.5 Weldo Flange, Nipo Flange Supplying to Following Regions & Countries:

AFRICA
Nigeria
Algeria
Angola
Tanzania
Libya
Egypt
Sudan
Equatorial Guinea
The Republic Of Congo
Gabon
NORTH AMERICA
Usa
Canada
Mexico
Costa Rica
Trinidad And Tobago
Jamaica
Denmark

MIDDLE EAST ASIA
Saudi Arabia
Iran
Iraq
Uae
Qatar
Bahrain
Oman
Kuwait
Turkey
Jordan
SOUTH AMERICA
Argentina
Bolivia
Brazil
Chile
Venezuela
Colombia
Ecuador
Guyana
Paraguay
Uruguay

EUROPE
Norway
Germany
France
Italy
Uk
Spain
Netherland
Belgium
Greece
Czech Republic
Portugal
Hungary
SOUTH AFRICA

ASIA
India
Singapore
Malaysia
Indonesia
Thailand
Vietnam
South Korea
Japan
Sri Lanka
Maldives
Bangladesh
Mayanmar
Taiwan
Cambodia

Call Now

Our Coverage

USA

Saudi-Arabia

Oman

Qatar

Kuwai

United-Arab-Emirates

Russia

Canada

Nigeria

Turkey

SS Nipo Flange

SS Nipo Flange

Our Coverage

You may also Like
