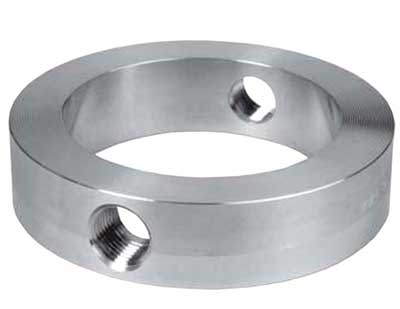

Arcellor Controls is a well-known manufacturer of Bleed Rings in India, utilizing high-quality raw materials. The face of the bleed ring can be manufactured to match any flange type. A bleed ring is a ring section with one or more radial pipe connections designed to fit between standard flanges within the bolt circle, using conventional gasket material. The ring typically comes in sizes 3/4″ tapped or 1/2″ socket weld for connecting with instruments and valves. RTJ bleed rings come in various sizes based on the ANSI flange rating of the process piping. There is no significant difference between Drip Rings and Bleed Rings.
Standard Sizes:
- NPS 1 to NPS 24
- ASME Pressure Classes 150 through 1500
2 Bleed Rings can be used instead of an orifice flange union and are easier to install compared to orifice flanges, especially in brownfield applications. Flat Face Bleed Rings provide a convenient way of draining piping, taking samples, attaching instruments, or even bleeding a valve. When used with a valve and blind flange, it allows you to relieve the pressure if your valve is leaking before you remove the flange. Check Bleed Ring dimensions, sizes, and weight as per your requirements.
Supplier Of:
- Bleed Ring Flat Face
- Bleed Ring RF
- Bleed Ring Cost
- RTJ Bleed Ring Weight
- Blind Ring Singapore
- Blind Ring Suppliers UK
- Blind Ring Suppliers in Singapore
- ASME B16.20 Bleed Ring
- Bleed Ring Malaysia
- Bleed Ring Material
- Bleed Ring Manufacturers
- ASME B31.3 Bleed Rings
- Drip Rings
ANSI/ASME B16.5 Bleed Ring Standard Specification
| Dimensions | ASME B16.5 – ASME B16.20 – ASME 31.3 |
| Size | 1/2″ – 24″ AND 1 13/16” – 4 1/16” |
| Class | 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc. |
| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
ASME B16.5 Bleed Ring Material Specification
Stainless Steel Bleed Rings:
- ASTM A182, A240 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H, 904L
Duplex & Super Duplex Steel Bleed Rings:
- ASTM/ASME A/SA 182 F44, F45, F51, F53, F55, F60, F61
Carbon Steel Bleed Rings:
- ASTM/ASME A/SA 105, A350, A181 LF2, A516 Gr.70, A36, A694 F42, F46, F52, F60, F65, F706
Low Temperature Carbon Steel Bleed Rings:
- ASTM A350, LF2, LF3
Alloy Steel Bleed Rings:
- ASTM/ASME A/SA 182, A387 F1, F5, F9, F11, F12, F22, F91
Copper Alloy Steel Bleed Rings:
- ASTM SB61, SB62, SB151, SB152 UNS No. C70600 (Cu-Ni 90/10), C71500 (Cu-Ni 70/30), UNS No. C10100, 10200, 10300, 10800, 12000, 12200
Nickel Alloy Bleed Rings:
- ASTM SB564, SB160, SB472, SB162 Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C276 (UNS No. N10276), Alloy 20 (UNS No. N08020)
For more detailed information on dimensions, weights, and prices, please refer to our product catalogue or contact us directly.
ANSI BLEED RING DIMENSIONS, BLEED RING SIZES
Class 150 Bleed Ring Dimensions, 4 Bleed Ring Weight
Pipe Size (NPS) | ASME-ANSI Class Dimension
A (Outside Diameter – IN) | B (Inside BORE-IN) | |||||
| 150 | 300 | 600 | 900 | 1500 | 2500 | ||
| 1/2 | – | – | – | – | – | – | – |
| 3/4 | – | – | – | – | – | – | – |
| 1 | 2 1/2 | 2 3/4 | 2 3/4 | 3 | 3 | 3 1/4 | 1 1/8 |
| 1 1/4 | 3 2 7/8 | 3 1/8 | 3 1/8 | 3 3/8 | – | – | 1 1/2 |
| 1 1/2 | 3 1/4 | 3 5/8 | 3 5/8 | 3 3/4 | 3 3/4 | 4 1/2 | 1 5/8 |
| 2 | 4 | 4 1/4 | 4 1/4 | 5 1/2 | 5 1/2 | 5 5/8 | 2 1/8 |
| 2 1/2 | 4 3/4 | 5 | 5 | 6 3/8 | – | 6 1/2 | 2 1/2 |
| 3 | 5 1/4 | 5 3/4 | 5 3/4 | 6 1/2 | 6 3/4 | 7 5/8 | 3 1/8 |
| 3 1/2 | 6 1/4 | 6 3/8 | 6 1/4 | – | – | – | 3 5/8 |
| 4 | 6 3/4 | 7 | 7 1/2 | 8 | 8 1/8 | 9 1/8 | 4 1/8 |
| 5 | 7 5/8 | 8 3/8 | 9 3/8 | 9 5/8 | 9 7/8 | 10 7/8 | 5 1/8 |
| 6 | 8 5/8 | 9 3/4 | 10 3/8 | 11 1/4 | 11 | 12 3/8 | 6 1/8 |
| 8 | 10 7/8 | 12 | 12 1/2 | 14 | 13 3/4 | 15 1/8 | 8 |
| 10 | 13 1/4 | 14 1/8 | 15 5/8 | 17 | 17 | 18 5/8 | 10 1/8 |
| 12 | 16 | 16 1/2 | 17 3/4 | 19 1/2 | 20 3/8 | 21 1/2 | 12 |
| 14 | 17 5/8 | 19 | 19 1/4 | 20 3/8 | 22 5/8 | – | 13 1/4 |
| 16 | 15 1/4 | 21 1/8 | 22 | 22 3/8 | 25 1/8 | – | 15 1/4 |
| 18 | 21 1/2 | 23 3/8 | 24 | 25 | 27 5/8 | – | 17 1/4 |
| 20 | 23 3/4 | 25 5/8 | 26 3/4 | 27 3/8 | 29 5/8 | – | 19 1/4 |
| 22 | – | – | – | – | – | – | – |
| 24 | 28 1/8 | 30 3/8 | 31 | 32 7/8 | 35 3/8 | – | 23 1/4 |
| Line Size | DIMENSIONAL DATA | |||||||||||
| 300# / 400# / 600# | 900# | 1500# | 2500# | |||||||||
| A | B | RING | A | B | RING | A | B | RING | A | B | RING | |
| 1″ | 2.750 | 1.320 | R-16 | 2.812 | 1.320 | R-16 | 2.812 | 1.320 | R-16 | 3.250 | 1.320 | R-18 |
| 1-1/2″ | 3.562 | 1.900 | R-20 | 3.625 | 1.900 | R-20 | 3.625 | 1.900 | R-20 | 4.500 | 1.900 | R-23 |
| 2″ | 4.250 | 2.375 | R-23 | 4.875 | 2.375 | R-24 | 4.875 | 2.375 | R-24 | 5.250 | 2.375 | R-26 |
| 2-1/2″ | 5.000 | 2.875 | R-26 | 5.375 | 2.875 | R-27 | 5.375 | 2.875 | R-27 | 5.875 | 2.875 | R-28 |
| 3″ | 5.750 | 3.500 | R-31 | 6.125 | 3.500 | R-31 | 6.625 | 3.500 | R-35 | 6.625 | 3.500 | R-32 |
| 4″ | 6.875 | 4.500 | R-37 | 7.125 | 4.500 | R-37 | 7.625 | 4.500 | R-39 | 8.000 | 4.500 | R-38 |
| 6″ | 9.500 | 6.625 | R-45 | 9.500 | 6.625 | R-45 | 9.750 | 6.625 | R-46 | 11.000 | 6.625 | R-47 |
| 8″ | 11.875 | 8.625 | R-49 | 12.125 | 8.625 | R-49 | 12.500 | 8.625 | R-50 | 13.375 | 8.625 | R-51 |
| 10″ | 14.000 | 10.750 | R-53 | 14.250 | 10.750 | R-53 | 14.625 | 10.750 | R-54 | 16.750 | 10.750 | R-55 |
| 12″ | 16.250 | 12.750 | R-57 | 16.500 | 12.750 | R-57 | 17.250 | 12.750 | R-58 | 19.500 | 12.750 | R-60 |
Types of Bleed Ring
| ANSI B16.5 Bleed Ring | ANSI B16.5 Class 150 Bleed Ring |
| 2 Bleed Rings | Pipe Bleed Ring |
| 4 Bleed Ring | Bleed Ring Dimensions |
| ASME B16.20 Drip Rings | 2 150# Bleed ring |
| Raised Face Bleed Ring Suppliers | Vent Rings |
| Bleed Ring Flat Face | Bleed Rings in ASME B31.3 |
| ANSI B16.20 class 150 Bleed Ring Stockholder | Raised Face Bleed Rings |
| Bleed Ring Class 150 | High Quality Bleed Ring |
| ASME B31.3 Bleed Rings | Steel Bleed Ring |
Bleed Ring Cost
- Bleed Ring Price: $22.45 / each
- RTJ Bleed Ring Price: $25.14 / each
- Raised Face Bleed Ring Price: $20.35 / each
ANSI B16.5 Bleed Rings Application
ASME B16.20 Bleed Rings are known for their exceptional performance and are generally developed to meet specific demands. These Bleed Rings are used in various industrial applications, including:
- Raised Face Bleed Rings in Structural Pipe
- 4 Bleed Ring in Plumbing
- 2 150# Bleed Rings in Heating
- Stainless Steel Bleed Ring in Oil and Gas Pipeline
- RTJ Bleed Rings in Chemical Industry
- Steel Bleed Ring in Food Processing Industry
- Vent Rings in Fabrication Industry
- Drip Ring in Water Supply Systems
- ANSI B16.5 Bleed Ring in Power Plant
- Bleed Rings in Paper & Pulp Industry
- Drip Rings in General Purpose Applications
ASME/ANSI B16.5 Bleed Ring Supplying to Following Regions & Countries:
