2 Way Manifold 3
2 Way Manifold 3
MATERIAL
- Available in SS316, NACE certified on request
- Heat Code Traceable to certified material test report
- Low operating torques
- PTFE packing standard, Graphite packing for high temperature on request
- Available with 2 way, 3 way and 5 way valve.
- Available with Pipe to Pipe, Pipe to Flange, Flange to Flange, Remote, Remote mounting Base vent, Base, Direct and Integral mounting.
- Convenient method of blocking, bleeding and calibrating pressure instruments.
- Designed for connection system impulse line & transfer
- Combine the function of a tee, calibration valve, isolation valve, all tubing and fittings in a single valve configuration.
- Standard port sizes up to 1/2” NPT/BSP/BSPT
- Every valve is factory tested
FEATURES
- Available in SS316, NACE certified on request
- Heat Code Traceable to certified material test report
- Low operating torques
- PTFE packing standard, Graphite packing for high temperature on request
- Available with 2 way, 3 way and 5 way valve.
- Available with Pipe to Pipe, Pipe to Flange, Flange to Flange, Remote, Remote mounting Base vent, Base, Direct and Integral mounting.
- Convenient method of blocking, bleeding and calibrating pressure instruments.
- Designed for connection system impulse line & transfer
- Combine the function of a tee, calibration valve, isolation valve, all tubing and fittings in a single valve configuration.
- Standard port sizes up to 1/2” NPT/BSP/BSPT
- Every valve is factory tested
OPERATING PARAMETERS
- Pressure Rating : upto 6000 psig (408 bar) at CWP
- Temperature Rating : -54ºC to 232ºC with PTFE packing, upto 426ºC with optional graphite packing
APPLICATION
- General Plant Service
- Pressure Instrumentation devices
- Differential pressure Instrumentation devices
- Pressure equalization
- Block and bleed applications
- Venting
| No. | Description | Material | Qty. |
| 1 | Body | SS 316 | 1 |
| 2 | Gland Body | SS 316 | 1 |
| 3 | Gland Retainer | SS 316 | 1 |
| 4 | Gland Seal | P.T.F.E. | 2 |
| 5 | Gland Seal | Viton | 2 |
| 6 | Spindle | SS 316 | 1 |
| 7 | Trim | SS 316 | 1 |
| 8 | Handle | SS 304 | 1 |
| 9 | Lock Pin | SS 304 | 1 |
| 10 | Dust Cap | P.V.C. | 1 |
| 11 | Check Nut | SS 304 | 1 |
| 12 | Grub Screw | cs | 1 |

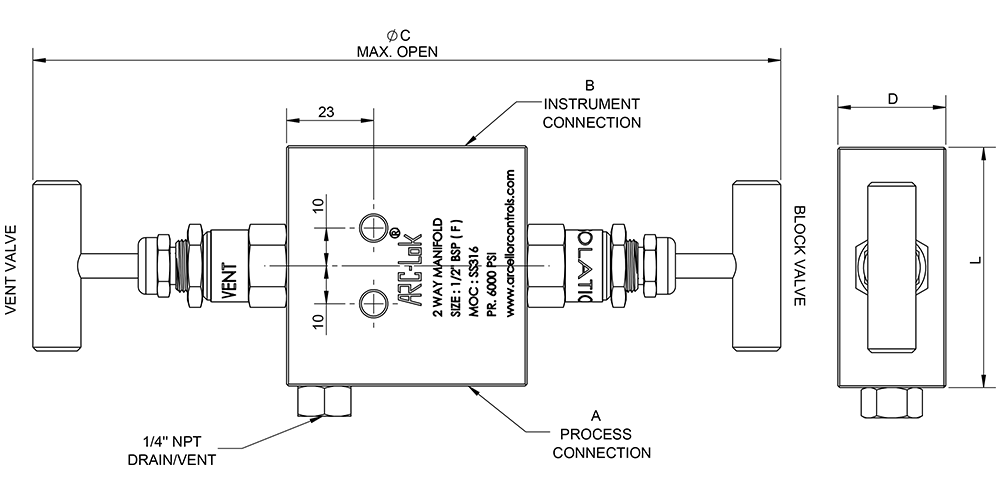

| PART.NO. | A-PROCESS CONN | B-INSTRUMENT CONN | C | D | L |
| ARC-2R-3-8N | 1/2” NPTF | 1/2” NPTF | 190 | 28.5 | 63.5 |
| ARC-2R-3-4N | 1/4” NPTF | 1/4” NPTF | 190 | 28.5 | 63.5 |
| ARC-2R-3-8N-10K | 1/2” NPTF | 1/2” NPTF | 190 | 28.5 | 63.5 |
| ARC-2R-3-8N-10K | 1/4” NPTF | 1/4” NPTF | 190 | 28.5 | 63.5 |
Above item is manufactured in all the following gradess (S.S, ALLOY, C.S ,DUPLEX , SUPER DUPLEX , HASTELLOY, MONEL, INCONEL)
Note:- All dimensions are in millimeters unless otherwise specified . Dimensions are for reference only , subject to change
